Click item for Larger image

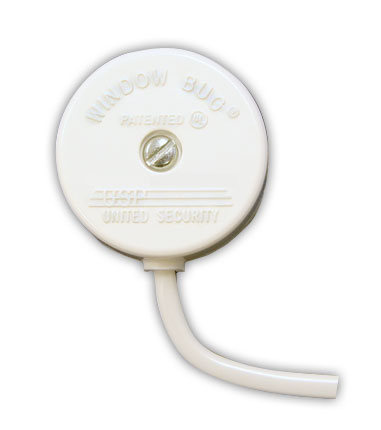

Glass Break Detector
Window Bug

714 & 724

Dry Circuit

No Power Required

Adjustable Operation of OC or CC

Peel and Stick Mounting

Protects up to 32 square feet

Automatic Reset

Available in Gray, White, or Brown

1 1/4” Diameter x 1/2” Length

Broken Pulse Time: 10 Milliseconds

Model 705 - Replacement mount plate

Model 724 - HG Compliant

Note: Please Specify Model 710 for Longer Pulse Time and CA State Fire Marshall Approved

Download 714 Product Manual PDF

Click item for Larger image

Pulse Stretcher

710

Accepts an unlimited number of Window Bugs (Model 714)

Increases “Broken Loop” Time

Automatically resets loop circuit

Operates from 4.5 to 16 volts DC

Can also be used with USP Model 330

Download 710 Product Manual PDF

Click item for Larger image

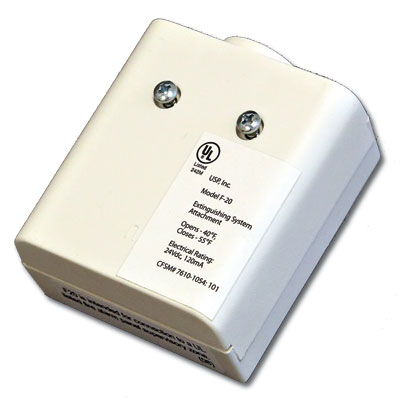

Temperature Switch

F20

Fixed Temperature Type

Closed Circuit Detector Opens at 40 F Variance of +/- 5 F

Contact Rating 24VDC-120mA

Automatic Reset

UL LIsted and CA State Fire Marshall Approved

Download F20 Product Manual PDF

Click item for Larger image

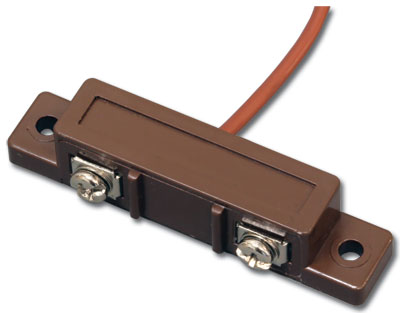

Water Detector

WLS

NO/NC Capability

1/2” x 1/2" x 2-1/2"

Activates with presence or absence of water

Detects water leaks before becoming a major problem

Detects low water in tanks

Easily installs to Voice Dialers just attach wires

Download WLS Product Manual PDF

Click item for Larger image

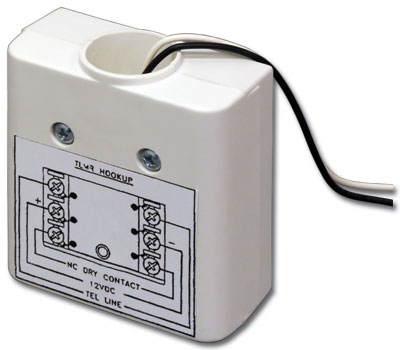

Telephone Line
Monitoring Relay

TLMR

Notifies of disconnection after 17 seconds delay, due to cut telephone lines or excessive drops in voltage

Normally closed or normally open output can be interfaced with any alarm panel or device that has normally open inputs.

Helps protect your environment by monitoring the phone line

Download TLMR Product Manual PDF

Click item for Larger image

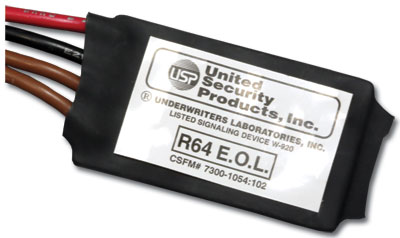

End of Line Relay

R64

Adaptable to any standard 4 or 6 wire system

Provides 12-24 VDC E.O.L. Power Supervision

UL listed and CA State Fire Marshall Approved.

Size 2-3/8” x 2-1/4” x1”

Download R64 Product Manual PDF

Click item for Larger image

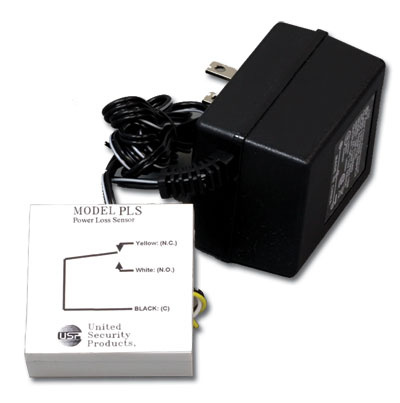

Power Loss Sensor

Detects loss of Power

(110 VAC)

Dry Contact Output

Automatic Reset

SPDT

Power Restore Sensor Available

Download PLS Product Manual PDF

Click item for Larger image

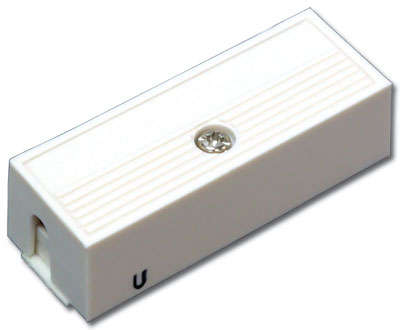

Vibration Detector

330

Ideal for walls, windows and safes, Tamper proof, dust proof cover,

Easy to mount with screws, double sided tape or epoxy

Gram-meter adjustable

CC

White or Gray

Download 330 Product Manual PDF
