USPs’ HUBTM Brand Hold Up Buttons, have set the standard for quality throughout the alarms and security systems industry. The security system switch is manufactured with gold, silver and copper for maximum conductivity and corrosion resistance, with a current rating of 10 Amps, and a voltage rating of 125/250 volts. Button Locating Ridges are a HUBTM exclusive.  U.S. and World patents pending.

hubs

TRU 900MHz HUBs and SYSTEM RECEIVERS

TRU Series HUB Transmitters and Receivers feature frequency-hopping, spread-spectrum technology that defeats interference and provides up to ½ mile of highly reliable range.
TRUs are the most powerful low cost wireless monitoring systems available.

HUB-TRU-M
Momentary one-way transmitter

HUB-TRU-L
Latching one-way transmitter

HUB-TRU-R
1-channel receiver that can monitor up to 10 transmitters

HUB-TRU-4R
4-channel receiver that can monitor up to 4 transmitters

HUB-TRU-16R
5-channel LCD receiver that can monitor up to 16 transmitters - Event log displays last 50 alarm events

HUB-TRU-32R
12-channel LCD receiver that can monitor up to 32 transmitters - Event log displays last 50 alarm events

hubs


Standard and Wireless Service HUBs can handle your toughest applications including multiple security cameras, alarm systems, event recorders, alarms and machinery, as well as Hold Up button call notification, all simultaneously. Recessed button prevents accidental activation, and latching switches have a reset tool included. Use to trigger a silent alarm and activate cameras and security system equipment, all with the same switch.



Click item for Larger image

HOLD-UP BUTTONS
HUB SERIES

HUB-2S Momentary SPDT
3 Solder Terminals

HUB-2SA Momentary SPDT
3 Screw Terminals

HUB-2 Latching DPDT,
6 Solder Terminals

HUB-2A Latching DPDT,
3 Screw 3 Solder Terminals

HUB-2B Latching DPDT,
6 Screw Terminals

HUB-3 Momentary DPDT
6 Solder Terminals

HUB-3A Momentary DPDT
3 Screw, 3 Solder Terminals

HUB-3B Momentary DPDT
6 Screw Terminals

Download HUB Spec Sheet PDF




Click item for Larger image

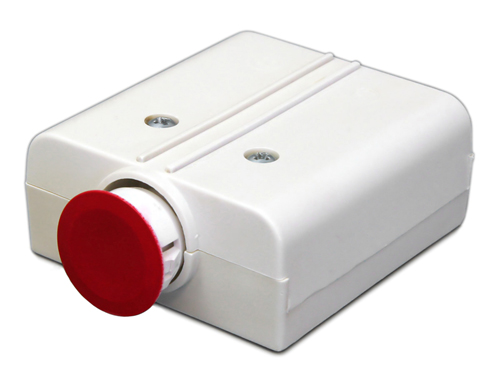

HUB-ES SERIES
SECURITY EMERGENCY SWITCH

HUB-2S-ES Momentary SPDT
3 Solder Terminals

HUB-2SA-ES Momentary SDPT
3 Screw Terminals

HUB-2-ES Latching DPDT,
6 Solder Terminals

HUB-2A-ES Latching SPDT,
3 Screw, 3 Solder Terminals

HUB-2B-ES Latching DPDT,
6 Screw Terminals

HUB-3-ES Momentary DPDT
6 Solder Terminals

HUB-3A-ES Momentary DPDT
3 Solder, 3 Screw Terminals

HUB-3B-ES Momentary DPDT
6 Screw Terminals

Download HUB-ES Spec Sheet PDF



Click item for Larger image

654 EMERGENCY
SWITCH

Combination N.C. & N.O.

12VAC, 3A or 250 VAC, 1A

Resistance: <50 m-ohms @ closed

100 M-ohms @ open @ 500 VDC

20,000 Operations Minimum

Download 654 Product Manual PDF




Click item for Larger image

COR2
HOLD-UP RAIL

Foot rail used to trigger alarm system, CCTV, etc.

UL Listed

DPDT Latching Switch

Rugged stainless steel construction

Electrical Characteristics

Rated Voltage: 125/250

Rated Current: 10 Amps

Download COR2 Product Manual PDF




Click item for Larger image

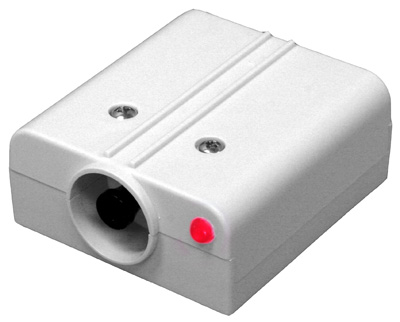

HUB LED SERIES
HOLD-UP BUTTONS
EMERGENCY SWITCHES

Flashing LED powered by Lithium Coin Battery – Easily replaced

Visual Indication of Switch Operation and HUB Activation

10+ Years Battery Life HUB-DL-M and 1+ Year Battery Life HUB-DL-L

HUB-DL-M  Momentary SPDT
3 Screw Terminals

HUB-DL-L  Latching SPDT
3 Screw Terminals

Download HUB DL Spec Sheet PDF




Click item for Larger image

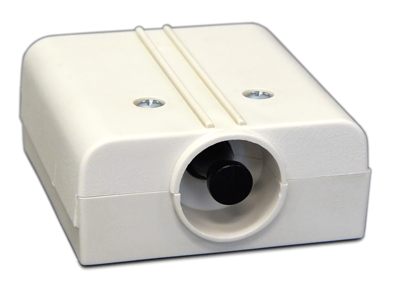

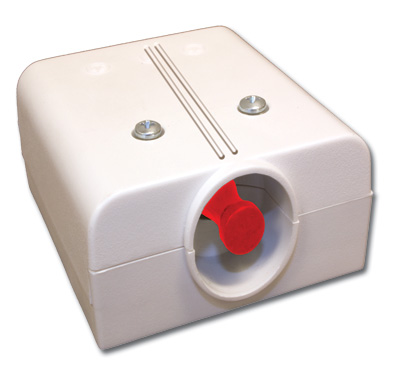

WIRELESS SERVICE
HOLD-UP BUTTONS

No Wires! Operate Security Alarms, Signal Devices, Security Cameras, Controls, Door Latches, Equipment, Machinery, Hazardous Areas, Etc...

Long Life, 10+ year Lithium Battery

Low Transmitter Battery Indication with most USP Receivers.

900MHz models with up to ½ mile range

WIRELESS HUBS - TRANSMITTERS

300MHz Momentary pushbutton transmitter

HUB-W1L
300MHz Latching pushbutton transmitter

HUB-TRU-M
900MHz Momentary pushbutton transmitter

HUB-TRU-L
900MHz Latching pushbutton transmitter
